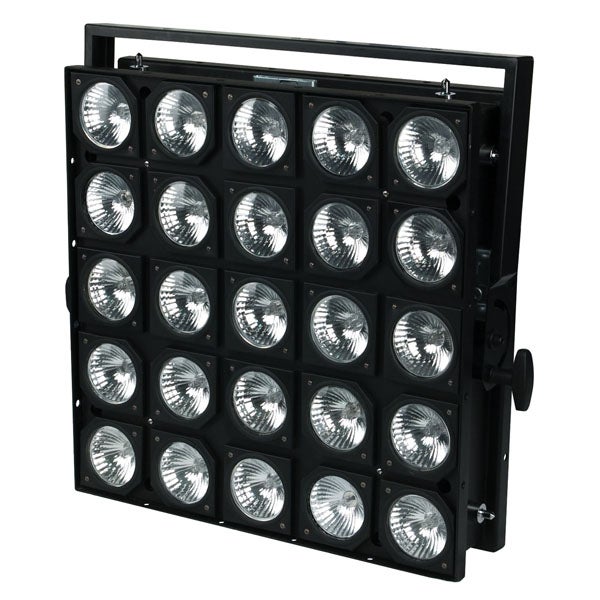

Showtec Matrix 5 x 5 Blinder

aún no hay comentarios

No disponible

Este producto ya no puede adquirirse

Características

Peso y las dimensiones incluyen el paquete

Peso: 17,8 kg
Dimensiones: 80,0 x 70,0 x 20,0 cm

Características del producto

power supply: AC220-240V, 50Hz~60Hz
power consumption: 1,900 W
lamp beam angle: 30 degrees
light source: 25x Par 30, 240V/75W, E27 (80120)
DMX connection: 3 and 5-pin in/out Neutrik, 512/1990 protocol
master/slave mode possible
controls: four DMX modes
4-digit LED display
3 and 5-pole Neutrik XLR connection
including mounting bracket
dimensions: 610 x 610 x 150 mm (W x H x D)
weight: 17.5 kg
flightcase: 960 x 770 x 85 mm
total weight: 39 kg

No se han encontrado alternativas

Características

Peso y las dimensiones incluyen el paquete

Peso: 17,8 kg
Dimensiones: 80,0 x 70,0 x 20,0 cm

Características del producto

power supply: AC220-240V, 50Hz~60Hz
power consumption: 1,900 W
lamp beam angle: 30 degrees
light source: 25x Par 30, 240V/75W, E27 (80120)
DMX connection: 3 and 5-pin in/out Neutrik, 512/1990 protocol
master/slave mode possible
controls: four DMX modes
4-digit LED display
3 and 5-pole Neutrik XLR connection
including mounting bracket
dimensions: 610 x 610 x 150 mm (W x H x D)
weight: 17.5 kg
flightcase: 960 x 770 x 85 mm
total weight: 39 kg

Información del producto

nº de producto: HI-30711

General

The Showtec Matrix is an extraordinary blinder! It offers room to 25 Par 30 lamps of 75 watts (lamps not included). The Matrix has four DMX modes, the easiest of which only uses four DMX channels and lets you simply operate the Matrix with the built-in macros. The most advanced mode uses 29 channels and lets you control all lamps and macros independently. Besides that, a 35-channel DMX mode allows you to use pixel mapping with the Showtec Matrix.

The Matrix is easy to connect with its fast-lock connector system. Furthermore, it has a Neutrik PowerCon power supply and 3 and 5-pole XLR connectors for DMX data transfers. With the digital LED display, addressing is very easy.
